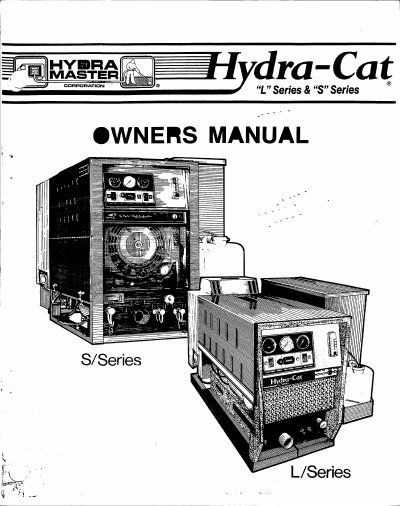

This is a repair manual for the S series car wash
This manual covers the installation, operation, and maintenance of the Hydra-Master S/Series truck-mounted carpet cleaning plant. It details the functions of the water, chemical, vacuum, and heating systems, as well as specific operating instructions for the Cat pump and heater components included in the unit.
The document includes comprehensive troubleshooting charts for various systems, warranty information, and specific procedures for machine preparation, freeze protection, and cleaning stroke operations. It also outlines the warranty policy and the procedure for ordering replacement parts directly from the manufacturer.
| Engine Max RPM | 2600 RPM |
|---|---|
| High Pressure Pump Max Pressure | 1200 PSI |
| Water Pressure Limit | 1000 PSI |
| Warranty Period (Engine) | 1 year |
| Warranty Period (High Pressure Pump) | 1 year |
| Warranty Period (Chemical Proportioning System) | 90 days |
Write to Hydra-Master Warranty Dept. at 20309 64th Ave. West, Lynnwood, Washington 98036, or call (206) 775-7275.
The warranty is voided by operating the engine at speeds exceeding 2600 RPM or failing to maintain proper oil levels.
The impellers must be lubricated daily with LPS-1 or WO-40 lubricant.
No, filter bags are explicitly not covered by the warranty.
