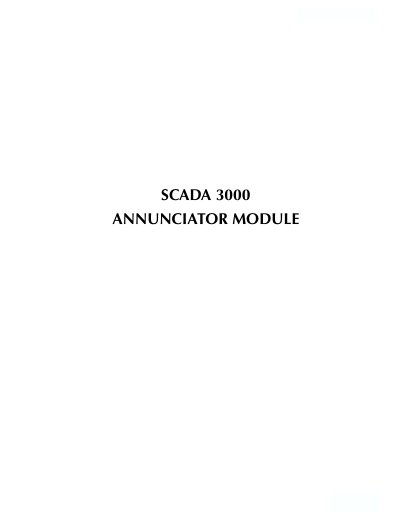

This document is a manual for SCADA 3000 ANNUNCIATOR MODULE AM-2
The document provides a user guide for the Phonetics SCADA 3000 Annunciator Module, an optional component that features eight programmable bi-color LED indicators to display I/O status. It details safety precautions and environmental requirements before installation.
The manual includes step-by-step instructions for mounting the module in a standard DIN enclosure, connecting power supplies (10-15VDC), and grounding the unit. It also explains how to configure serial communications wiring, set unique bus addresses using jumpers, and properly terminate the communication network.
| LED Indicators | 8 programmable LED indicators |
|---|---|
| LED Type | bi-color (red/amber) |
| Enclosure Size | 1/8 DIN enclosure |
| Operating Voltage | 10-15VDC |
| Power Consumption | 1.5 Watts |
| Operating Temperature | 0°C to 70°C (32 °F to 158 °F) |
| Max Modules per Bus | 15 modules |
| Max Distance | 2000' |
Up to 15 modules can be connected using the high-speed serial communications bus.
The LEDs are bi-color (red/amber); red indicates an active or ON condition, while amber indicates inactive or OFF.
Termination is required only at the extreme ends of the network by moving the BUS TERM jumper to the IN position.
