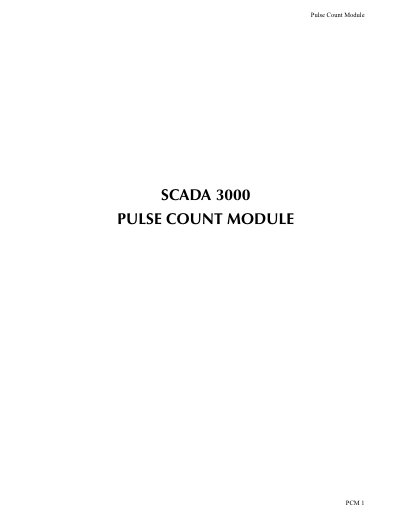

This document is a user's manual for SCADA 3000 PULSE COUNT MODULE PCM 2
The SCADA 3000 Pulse Count Module (PCM 1) is an optional component for the SCADA 3000 system. It features four totalizing pulse count channels and four virtual channels that can be programmed to calculate various rates or to display count overflow. Each channel is capable of counting pulses at a rate of up to 10,000 pulses per second (10KHz).
| Pulse Count Channels | Four totalizing pulse count channels |
|---|---|
| Virtual Channels | Four virtual channels |
| Max Count Rate | 10,000 pulses per second (10KHz) |
| Max Total Count | One million |
| Operating Voltage | 10-15VDC |
| Power Consumption | 1.5 Watts |
| Operating Temperature | 32°F to 158°F (0°C to 70°C) |
| Max Module Distance | 2000 feet |
Each channel is capable of counting pulses at a rate of up to 10,000 pulses per second (10KHz).
The 4-wire bus is used to connect up to 15 modules to the main unit.
