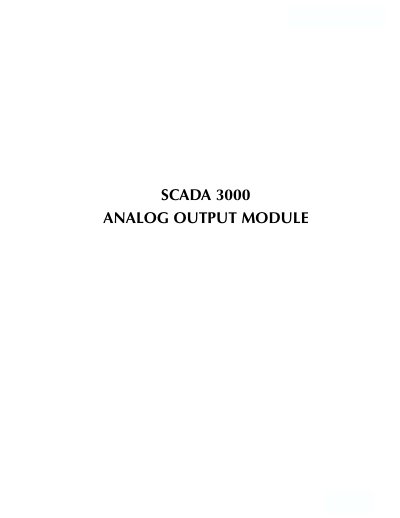

Phonetics SCADA 3000 Analog Output Module User's Manual

This document is a user manual for AOM-1 and AOM-2 Analog Output Modules, describing the features and characteristics of these modules.

Brand: SCADA
Document type: User Manual
Language: English
Pages: 17
File format: PDF
File size: 141 KB
Published: 07 August, 2012
Updated: 29 September, 2023
Model: SCADA 3000
MD5 checksum: 7607D29BB35AED738B72994B5ACEDBA0
PDF: Phonetics SCADA 3000 Analog Output Module User's Manual PDF

About this manual

The document serves as a user guide for the SCADA 3000 Analog Output Module, an optional component designed to provide four configurable analog output signals. The module supports configurations of 4-20mA, 0-20mA, or 0-10V and is capable of driving loads up to 1000 Ohms.

What's inside

IMPORTANT SAFETY INSTRUCTIONS
FCC Requirements
Introduction
Technical Support
Installation
Operating Environment
Mounting the Module
Power Supply and Grounding
Communications Wiring
Specifications

Specifications

Output Signals	4+20mA, 0-20mA, or 0-10V
Load Drive Capability	up to 1000 Ohms
Operating Temperature	32°F to 158°F (0°C to 70°C)
Power Supply	10-15VDC

Frequently asked questions

What is the operating temperature range?

The module can operate in a temperature range of 32°F to 158°F (0°C to 70°C).

What power supply voltage is required?

The module operates on a DC power supply of 10-15V.
