This document provides three user manuals for ROM (Relay Output Module), including safety instructions, installation instructions, and information about the product.

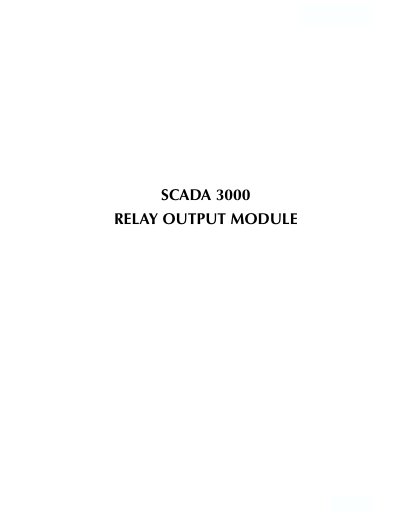

This manual provides instructions for the installation and operation of the Phonetics SCADA 3000 Relay Output Module. The module features eight latching relay outputs rated at 2 Amps at 125VAC, designed to switch equipment on and off either manually or automatically via ladder programs. It includes a microprocessor watchdog circuit for system reliability and LED indicators for status monitoring.
| Output Channels | eight latching relay outputs |
|---|---|
| Relay Rating | 2 Amps at 125VAC |
| Operating Temperature | 32°F to 158°F (0°C to 70°C) |
| Power Supply | 10-15VDC |
| Max Distance | 2000' |
The module features eight latching relay outputs.
The relays are rated at 2 Amps at 125VAC.
The module can operate in a temperature range of 32°F to 158°F (0°C to 70°C).
