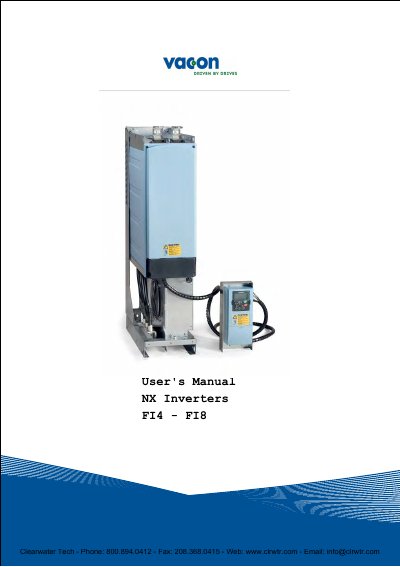

Vacon FI4-FI8 Inverter User's Manual

This manual describes the installation, wiring, commissioning and maintenance of the NX series inverters, and provides a troubleshooting guide.

Brand: Vacon
Document type: User Manual
Language: English
Pages: 87
File format: PDF
File size: 1.4 MB
Published: 07 August, 2012
Updated: 30 September, 2023
MD5 checksum: 2794FE180A24A1C07B1F12CFCB3A2D8C
PDF: Vacon FI4-FI8 Inverter User's Manual PDF

About this manual

The document serves as a comprehensive guide for users of Vacon NX inverters (models FI4 to FI8). It details the necessary steps from receipt of delivery and safety precautions to mechanical installation and electrical cabling. The manual emphasizes following a specific Start-Up Quick Guide before commissioning to ensure proper operation.

What's inside

Safety
EU Directive
Receipt of Delivery
Technical Data
Installation
Cabling and Connections
Control Keypad
Commissioning
Fault Tracing

Specifications

Supply voltage (Frame 5)	465-800 Vdc
Motor voltage (Frame 5)	380—500 Vac
Supply voltage (Frame 6)	640-1100 Vdc
Motor voltage (Frame 6)	525—690 Vac

Frequently asked questions

What are the minimum steps required during installation and commissioning?

At least the 10 following steps of the Start-Up Quick Guide must be performed.

What should be checked before taking any commissioning actions?

Users must read the safety instructions in Chapter 1 carefully.

Where can information about special applications be found if standard ones do not meet requirements?

Users should contact the manufacturer for information on special applications.

Download PDF (1.4 MB)
