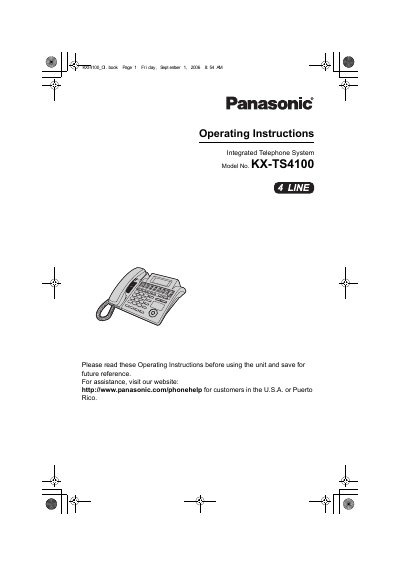

This is a user manual for KX-TS4100 telephone system, introducing the system's features, installation methods and usage methods
This document provides operating instructions for the Panasonic KX-TS4100 Integrated Telephone System. It guides users through initial setup, including connecting the handset, AC adaptor, and telephone line cords. The manual details how to configure settings such as display language, date and time, and dialing mode.
| Operating environment | 5 °C – 40 °C (41 °F – 104 °F) |
|---|---|
| Dimensions | Approx. height 105 mm x width 245 mm x depth 225 mm |
| Mass | Approx. 1,050 g (2.32 lb.) |
| Power consumption (Standby) | Approx. 5 W |
| Power consumption (Maximum) | Approx. 8 W |
| Power supply | AC adaptor (120 V AC, 60 Hz) |
The unit should operate between 5 °C and 40 °C (41 °F – 104 °F).
A standard 9 V Alkaline battery (6LR61) is required.
The maximum power consumption is approximately 8 W.
