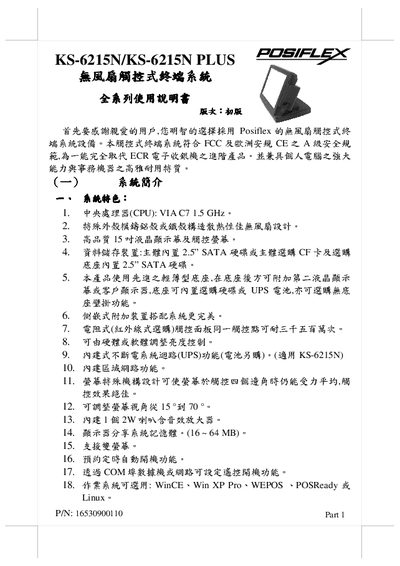

KS-6215N/KS-6215N PLUS fanless touch terminal is a high performance product integrating personal computer and office equipment.
The KS‑6215N and KS‑6215 PLUS are POS terminal systems that combine a compact PC‑like core with a rugged, fan‑less design, a high‑quality LCD display, and optional UPS and storage options. They support multiple operating systems such as WinCE, Windows XP Pro, POSReady, WEPOS, and Linux.
This guide covers hardware installation, including separating the main unit from the base, mounting the base, connecting the UPS battery, attaching optional LCD panels and peripheral devices, wiring the system, and configuring serial, USB, and network interfaces. Safety warnings and procedures for system recovery are also included. This manual is written in Chinese.
| CPU | VIA C7 1.5 GHz |
|---|---|
| UPS battery (optional) | 2.3 Ah 12 V sealed lead‑acid |
| USB ports | 4 ports, USB 2.0/1.1 |
| Serial ports (KS‑6215N) | 4 × 10‑pin RJ45 RS232 |
| Serial ports (PLUS) | 2 × DB9 RS232 |
| Speaker | 1 × 2 W built‑in speaker |
The system provides four USB ports that support both USB 2.0 and USB 1.1.
An optional 2.3 Ah 12 V sealed lead‑acid UPS battery can be installed.
The terminals can run WinCE, Windows XP Pro, POSReady, WEPOS, or Linux.
The PLUS model provides two DB9 RS232 serial ports.
