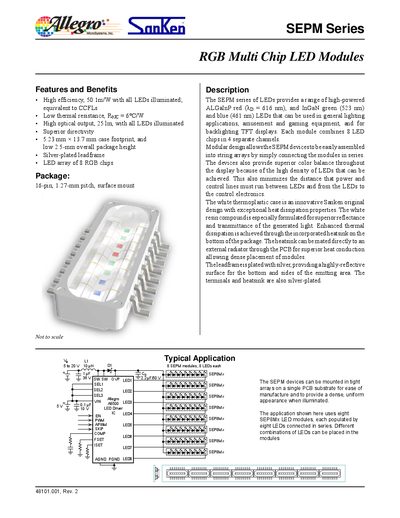

The SEPM series of LEDs provides a range of high-powered ALGaInP red (λD = 616 nm), and InGaN green (523 nm) and blue (461 nm) LEDs that can be used in general lighting applications, amusement and gaming equipment, and for backlighting TFT displays. Each module combines 8 LED chips in 4 separate channels. Modular design allows the SEPM devices to be easily assembled into string arrays by simply connecting the modules in series. The devices also provide superior color balance throughout the display because of the high density of LEDs that can be achieved. This also minimizes the distance that power and control lines must run between LEDs and from the LEDs to the control electronics. The white thermoplastic case is an innovative Sanken original design with exceptional heat dissipation properties. The white resin compound is especially formulated for superior reflectance and transmittance of the generated light. Enhanced thermal dissipation is achieved through the incorporated heatsink on the bottom of the package. The heatsink can be mated directly to an external radiator through the PCB for superior heat conduction allowing dense placement of modules. The leadframe is plated with silver, providing a highly-reflective surface for the bottom and sides of the emitting area. The terminals and heatsink are also silver-plated.
The SEPM Series RGB Multi Chip LED Modules from Allegro MicroSystems provide high‑efficiency, high‑output lighting in a compact 5.23 mm × 13.7 mm package. Each module contains eight RGB chips (24 LEDs) arranged in four separate color channels and can be mounted in series or parallel configurations for flexible system design.
The document includes detailed electrical, optical and thermal ratings, absolute maximum limits, and example schematics for typical applications such as backlighting TFT displays, general lighting, and gaming equipment. Contact information for worldwide distributors is also provided.
| Forward Current (Continuous) | 40 mA per element |
|---|---|
| Reverse Voltage | 5 V |
| Operating Temperature | -40 °C to 85 °C |
| Storage Temperature | -40 °C to 90 °C |
| Thermal Resistance (Junction‑to‑Heatsink) | 6 °C/W |
| Luminous Flux (Red channel) | 3.5 lm – 5.0 lm |
The datasheet specifies a continuous forward current of 40 mA per element.
They are rated for operation from –40 °C up to 85 °C.
