The C Series is Lab.gruppen's latest amplifier series, featuring patented Class TD technology to provide high efficiency and superior sound quality. C Series amplifiers are available in a variety of power and channel configurations to meet the needs of different applications.

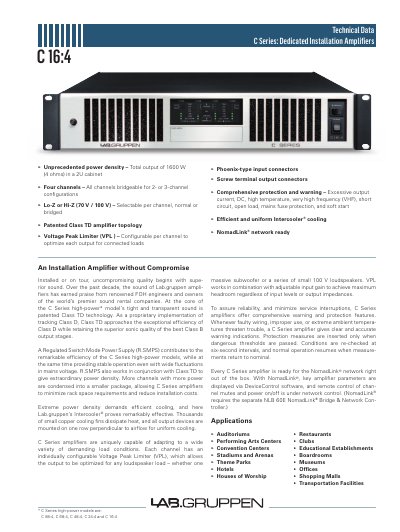

This document provides technical data for the Lab.gruppen C 16:4, a dedicated installation amplifier in the C Series. It features an unprecedented power density of 1600 W (4 ohms) in a 2U cabinet and utilizes a patented Class TD amplifier topology for superior sound quality and efficiency.
| Total output (4 ohms) | 1600 W |
|---|---|
| Number of channels | 4 |
| Amplifier gain | Selectable |
| Input connectors | Phoenix-type |
| Output connectors | Screw terminal |
| Dimensions (W/H/D) | 483 x 88 x 343 mm |
| Weight | 12 kg |
The amplifier provides a peak total output of 1600 W when all channels are driven.
The unit has four channels, and all channels are bridgeable for 2- or 3-channel configurations.
The output can be set to Lo-Z or Hi-Z (70 V / 100 V) modes, selectable per channel.
The dimensions are 483 mm (19") wide, 88 mm (2 U) high, and 343 mm (13.5") deep.
