The document provides information on the features, characteristics, and installation instructions for a product.

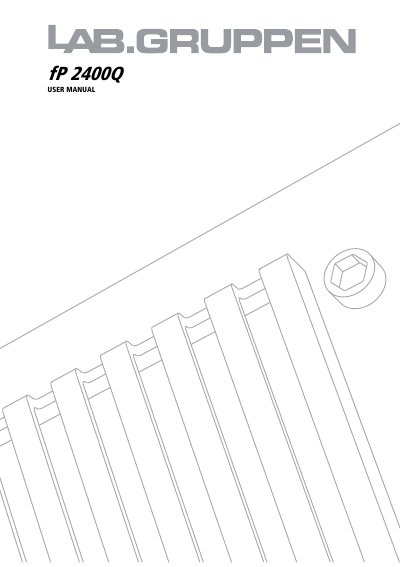

The document serves as a comprehensive guide for the Lab.gruppen fP 2400Q professional audio power amplifier. It covers essential topics including unpacking, detailed descriptions of the front and rear panels, and specific operational modes such as stereo, tandem, bridge mono, and impedance matching using MLS technology.
Key sections include installation procedures regarding mounting, cooling, grounding, and power consumption. The manual also details connection methods for balanced and unbalanced inputs as well as speaker wiring. Operational precautions, indicator functions (such as over-temperature and clip limiter), and protection features like thermal and short-circuit protection are explained to ensure safe usage.
| Operating Voltage | 200-240V, 50-60Hz |
|---|---|
| Maximum Operating Temperature | 90°C |
No, you must not connect an amplifier output in parallel or series with any other amplifier's output.
The over temperature protect indicator will illuminate as a warning, and if the temperature exceeds 90°C, the amplifier will mute the input signal until it cools down.
You must always operate the unit with the chassis ground wire connected to the electrical safety earth to ensure safety.
The amplifier must be connected only to AC power outlets rated 200-240V, 50-60Hz.
