This manual introduces the features and characteristics of QSC PLX series amplifiers, including instructions for use, installation, connection, operation and maintenance.

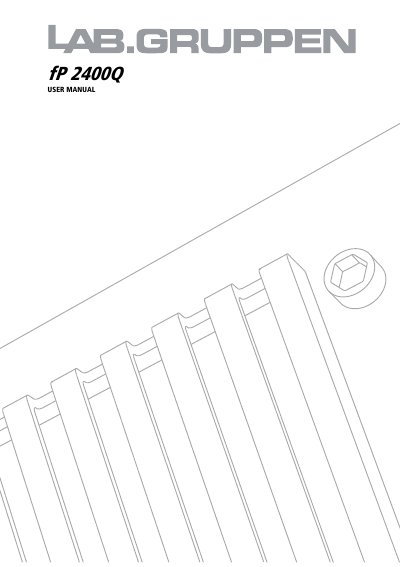

The document serves as a comprehensive guide for the Lab.gruppen fP 2400Q/115 power amplifier. It covers essential topics including unpacking, front and rear panel features, installation requirements such as mounting and grounding, and connection procedures for inputs and speakers.
Detailed sections explain various operation modes like stereo, tandem, bridge mono, and impedance matching using MLS technology. The manual also outlines protection features, maintenance guidelines, troubleshooting steps, and specific technical specifications.
| Operating Voltage | 100-120V, 50-60Hz |
|---|---|
| Maximum Operating Temperature | 90°C |
Do not use this unit near water, do not spill liquids into or on the unit, and do not operate it while wet or standing in liquid.
Always operate the unit with the chassis ground wire connected to the electrical safety earth.
