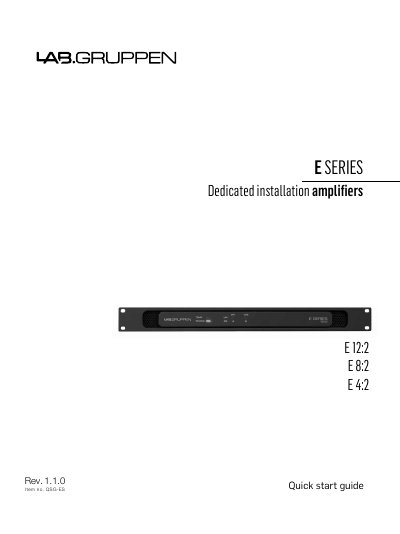

This document is the quick start guide for E 12:2, E 8:2, E 4:2 series amplifiers
This document serves as a Quick Start Guide for the Lab.gruppen E Series of dedicated installation amplifiers, specifically models E 12:2, E 8:2, and E 4:2. It provides essential information regarding safety warnings, unpacking procedures, and visual checks to ensure the equipment arrives in perfect condition.
The guide details the physical characteristics of the amplifier, noting a depth of 276 mm and a weight of approximately 4.2 kg depending on the model. It outlines installation requirements, emphasizing the need for free air flow from front to rear for cooling and prohibiting the mounting of doors or covers in front of or behind the units.
| Power Supply Range | 100 – 240 V at 50 or 60 Hz |
|---|---|
| Amplifier Depth | 276 mm (10.9 in) |
| Weight | approximately 4.2 kg (9.2 lbs) |
| Input Connectors | three-pole Phoenix-type connectors |
As shipped, the amplifier goes to low power standby mode when no signal is present for 20 minutes.
A flashing amber TEMP LED indicates excessive temperature, which turns steady amber and mutes the amp if the danger threshold is exceeded.
