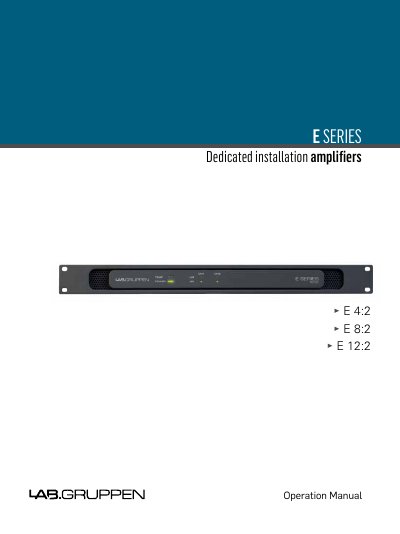

Lab.gruppen E Series Dedicated Installation Amplifiers Operation Manual

About this manual

This document is the Operation Manual for the Lab.gruppen E Series dedicated installation amplifiers, specifically models E 4:2, E 8:2, and E 12:2. It provides essential safety instructions, including warnings about moisture, grounding, and electrical hazards, as well as guidelines for proper rack installation and maintenance.

What's inside

• Important safety instructions
• Approvals
• Warnings
• Introduction
• Main features
• Installation
• Quick guide overview
• Operation and performance
• Maintenance
• Technical specifications

Frequently asked questions

What is the maximum peak output voltage for the "70 V" mode?

The "70 V" mode has a peak output voltage of 100 V peak.

What is the maximum peak power into 4 ohms in "70 V" mode?

The "70 V" mode can produce up to 2500 W peak into 4 ohms.

What is the required AC power rating for this amplifier?

The unit must be connected only to AC power outlets rated 100 -240 V, 50 - 60 Hz.
