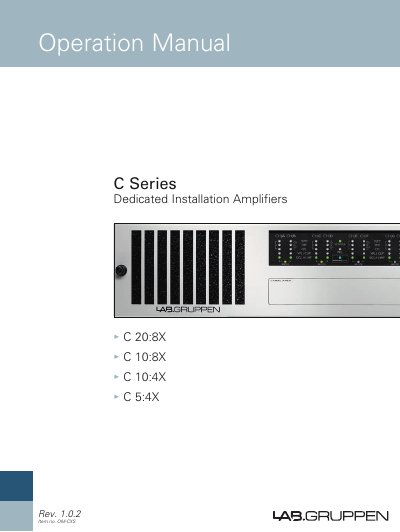

Lab.gruppen C Series Dedicated Installation Amplifiers Operation Manual

This manual describes the features and operation of the C 20:8X, C 10:8X, C 10:4X and C 5:4X Installation Amplifiers.

Brand: Lab.gruppen
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 33
File format: PDF
File size: 2.2 MB
Published: 06 August, 2012
Updated: 30 September, 2023
Models: C 10:4X, C 5:4X
MD5 checksum: BAC633A80EF660697FB8606D026DCCEE
PDF: Lab.gruppen C Series Dedicated Installation Amplifiers Operation Manual PDF

About this manual

This document is the official operation manual for the Lab.gruppen C Series of dedicated installation amplifiers. It covers four specific models: C 20:8X, C 10:8X, C 10:4X, and C 5:4X. The guide provides comprehensive instructions on unpacking, mounting in a 19-inch rack, cooling requirements, and electrical connections.

What's inside

Explanation of Graphical Symbols
Important Safety Instructions
Main Features
Installation
Front Panel Overview
Rear Panel Overview
NomadLink Network Setup
Operation Precautions
Protection and Faults
Technical Specifications

Frequently asked questions

What are the safety requirements for mains connection?

Your amplifier must be connected to a grounded socket outlet.

Can I touch speaker wiring while the unit is operating?

No, do not touch any exposed speaker wiring while the amplifier is operating due to hazardous output voltages.

What should I do if dust filters are not maintained?

You must clean them regularly to prevent safety risks such as fire or malfunction due to high internal temperatures.
