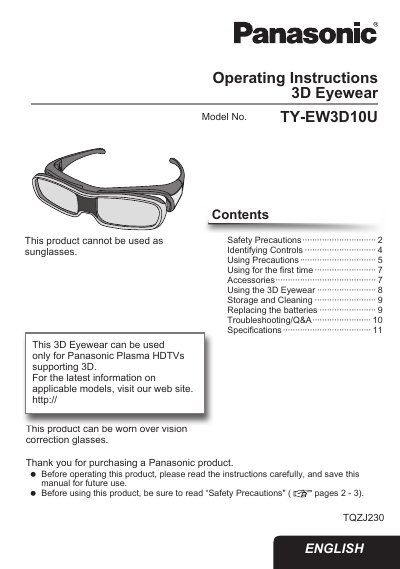

This document is the operating instructions for Panasonic 3D Eyewear TY-EW3D10U model, including safety precautions, instructions for use, accessories, storage and cleaning methods, battery replacement, troubleshooting, etc.
This document provides operating instructions for the Panasonic TY-EW3D10U 3D Eyewear. It details safety precautions regarding battery ingestion and disassembly, as well as viewing guidelines to prevent eye strain or injury. The manual explains how to install nose pads and specialized bands, turn on the device using the power button, and store it properly.
| Lens type | Frame sequential type |
|---|---|
| Batteries | Coin-shaped lithium battery CR2032 |
| Battery duration | approx. 75 hours in a row |
| Width | 177 mm (6-15/16") |
| Height | 46 mm (1-25/32") |
| Depth | 174 mm (6-27/32") |
| Power supply | DC3V |
| Mass | Approx. 63 g (approx. 2.22 ozs.) |
| Viewing range | Within 3.2 m (10'5") from front surface |
| Usage temperature range | 0 °C - 40 °C (32°F - 104°F) |
Yes, this product can be worn over vision correction glasses.
At least 1.9 meters (6'2") or more.
