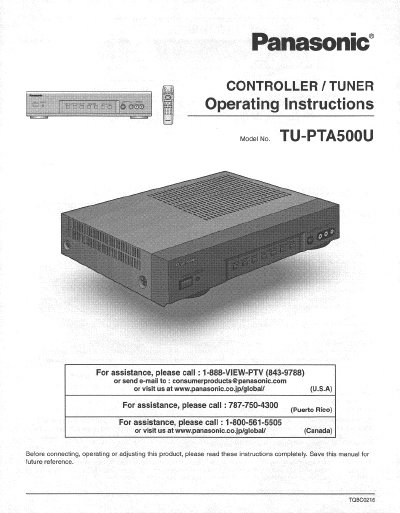

Panasonic TU-PTA500U Controller/Tuner Operating Instructions

About this manual

This document provides the operating instructions for the Panasonic TU-PTA500U Controller/Tuner. It includes important safety warnings regarding electric shock and moisture, as well as instructions for proper installation and ventilation to ensure reliable operation.

What's inside

• Important Safety Instructions
• Installation
• FCC Statement
• FCC Declaration of Conformity
• Canadian Notice

Frequently asked questions

How much space is required around the ventilation openings?

You must leave at least 4 inches (10 cm) of space from those openings.

What is the minimum distance between the controller/tuner and a wide plasma display?

You should install the unit at least 15.7 inch (40 cm) away from the Wide Plasma Display.

What type of wire is recommended for video cables?

Video cables should utilize 75 © coaxial shielded wire.
