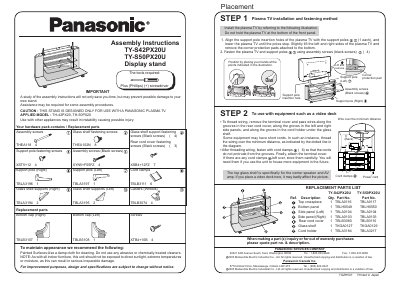

Panasonic TY-S42PX20U/TY-S50PX20U Display Stand Assembly Instructions

About this manual

This document provides assembly instructions for the Panasonic TQZH507 Display Stand (Models TY-S42PX20U and TY-S50PX20U). It details how to install the unit with a compatible Panasonic Plasma TV, attach glass shelves, and manage cabling. The guide includes a replacement parts list and specific tools required for assembly.

What's inside

• Replacement Parts List
• Assembly Instructions
• Plasma TV Installation
• Glass Shelf Attachment
• Cable Management
• Safety Warnings
• Placement Guidelines

Frequently asked questions

What type of television is this stand designed for?

This stand is designed only for use with a Panasonic plasma TV.

Which specific Panasonic models are compatible with this assembly?

The stand is applied for use with the TH-42PX20 and TH-50PX20 models.

What is the maximum weight limit for equipment on the glass shelves?

Do not load either glass shelf with equipment weighing over 12 kg (26 Ib.).
