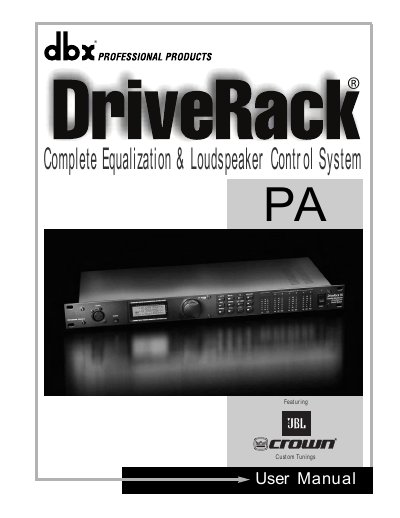

This document is a user manual for a complete equalization and loudspeaker control system featuring custom tunings. The document includes instructions and warnings such as protecting the equipment from liquid exposure, not blocking the ventilation openings, avoiding proximity to heat sources, using only manufacturer-specified attachments/accessories, unplugging during lightning storms or long periods of non-use, and protecting the power cord from damage. The document also mentions the importance of using a polarized or grounding-type plug for safety and provides recommendations for protecting the power cord from being walked on or pinched. Finally, the document mentions the use of specified stands or tables with the equipment.
The dbx DriveRack PA is a complete equalization and loudspeaker control system designed for public address applications. It integrates key elements for optimal loudspeaker system management, offering features such as stereo feedback elimination, dual 28-band graphic EQ, and a classic dbx compressor. The unit serves as a comprehensive device between the mixer and power amplifiers.
| Feedback Notch Filters | 12 |
|---|---|
| Graphic EQ Bands | Dual 28-band |
| ADC/DAC Resolution | 24-Bit |
| Dynamic Range | >110 dB |
| Input Channels | 2 Channel XLR |
| Output Channels | 6 Channel XLR |
| Crossover Configurations | 2x3, 2x4, 2x5, 2x6 |
It is intended for rack mount use only and is designed for public address system applications.
No, there are no user serviceable parts inside, and opening the chassis voids the warranty.
The unit requires an Eveready CR 2032 or equivalent lithium battery.
