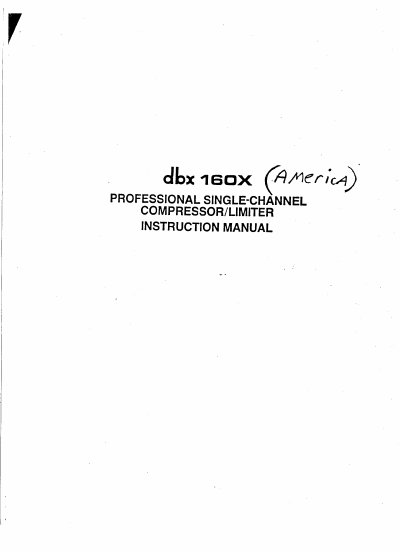

dbx 160X Professional Single-Channel Compressor/Limiter Instruction Manual

About this manual

The dbx Model 160X is a professional single-channel compressor/limiter featuring an exclusive combination of Over Easy and hard knee compression characteristics. It utilizes true-RMS level detection, wide-range Blackmer voltage-controlled amplifiers (VCA), and feed-forward circuitry to achieve large amounts of compression without adverse audible side effects. The unit also supports Infinity+ compression for special negative dynamic effects.

What's inside

• Introduction
• Front Panel Controls
• Rear Panel Connections
• Installation Procedures
• Stereo Strapping
• Operation and Controls
• Typical Applications
• Technical Information

Frequently asked questions

What is the maximum amount of compression the Model 160X can achieve?

The unit is capable of greater than 60 dB of compression.

What are the input and output level ranges for the LED display?

The display shows input or output levels from -40 dB to +20 dB, depending on the switch setting.

What is the maximum fixed gain adjustment available?

The Output Gain control varies a fixed gain of up to +20 dB in the output amplifier stage.
