dbx 163A OverEasy Compressor/Limiter Operation Manual

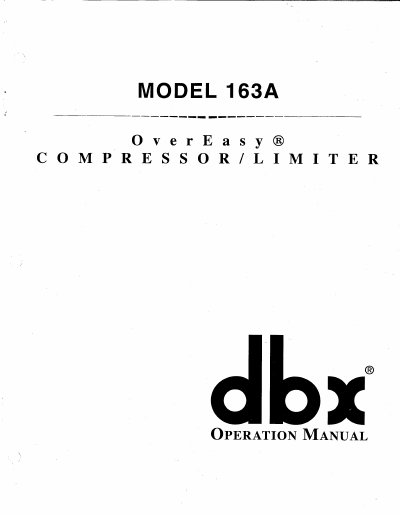

dbx 163A OverEasy Compressor/Limiter Operation Manual - cover page
Brand
dbx
Category
Other Electronics
Document type
User Manual
Language
English
Pages
18
File format
PDF
File size
752 KB
Published
02 August, 2012
Updated
02 August, 2012
MD5 checksum
21834A44AB41FF7D31253708E6C78C35

About this manual

The dbx 163A OverEasy Compressor/Limiter is a versatile audio processor designed for musicians, DJs, and studio operators. It features dbx's patented OverEasy compression technology, which utilizes a soft knee threshold and human-ear compatible true RMS detection to provide smooth dynamic control. The unit allows users to adjust compression levels rapidly using a single front-panel slider, eliminating the need for separate threshold and ratio controls found on conventional compressors.

What's inside

  • Introduction
  • Inspection
  • Quick Setup
  • Understanding Compression
  • Operating Controls
  • Connecting the 163A to Your System
  • Installation Considerations
  • Technical Support / Factory Service
  • Specifications

Specifications

Gain ReductionUp to 40dB
Input Level Range-30dBu to +10dBu
Warranty PeriodTwo years

Frequently asked questions

What is the primary purpose of the compressor?

The primary purpose is to reduce and control the dynamic range of a program.

How does the 163A adjust compression?

It uses a single front panel slide control to determine the amount of compression.
