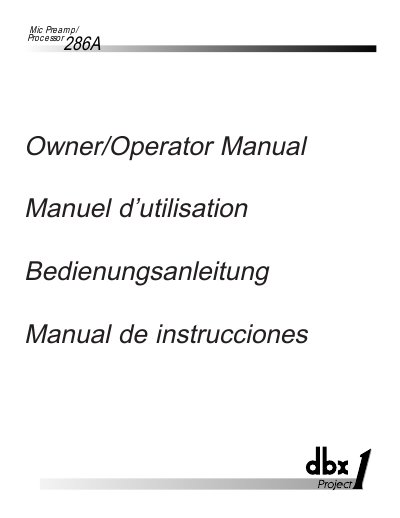

This document is the owner/operator manual for the Mic Preamp/ Processor286A, providing warnings and precautions for using the device, including not placing it near water sources, using the appropriate power supply, maintaining proper grounding and polarization, protecting the power cord, and not attempting to service the device beyond the instructions.
The dbx 286A is a powerful, user-friendly unit that functions as both a microphone preamp and a signal processor. It features a Mic Preamp Section and a Processing Section, which can be used together or separately by engaging the front panel BYPASS switch. The unit is designed for recording vocals, acoustic instruments, and other mono sound sources, as well as for public address systems.
| Compressor Density | 2, 5, 10, OFF |
|---|---|
| Compressor Drive | +10, +35, +60 |
| De-Esser Threshold Frequency | OFF, 5, 10, 8, 7, 6, 12, 3, 4 |
| Enhancer HF Detail | OFF, 5, 10, 9, 8, 7, 6, 12, 3, 4 |
| Enhancer LF Detail | OFF, 5, 10, 9, 8, 7, 6, 12, 3, 4 |
Yes, the unit can be used as a dedicated Mic Preamp by defeating the Processing Section via the front panel BYPASS switch.
You should reduce the gain via the MIC GAIN control so that the CLIP LED never lights.
