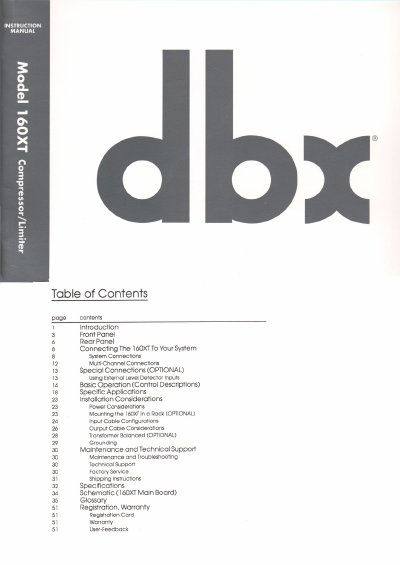

This document is the instruction manual for the dbx Model 160XT Compressor/Limiter. It details the features of the unit, including Over Easy/Hard Knee selection, True RMS level detection, and DC-controlled parameters to eliminate potentiometer noise. The guide explains how to use the front panel controls such as Threshold, Compression Ratio, Output Gain, and the various LED displays for monitoring input/output levels and gain reduction.
| Input/Output Connectors | XL-type Input and Output Connectors |
|---|---|
| Balanced Output Load | 600Ω load to +24dBu |
| Power Consumption | 12 watts AC power |
| Input Threshold Range | -40dBu to +20dBu |
| Output Gain Range | up to +20dB |
Over Easy mode allows selection of a specific compression curve where the threshold is defined as the middle of the region, while Hard Knee operates with a standard threshold point above which output level no longer changes on a 1:1 basis.
It senses the power in the program in a musical manner, similar to how the ear does, providing results superior to peak or average detection.
Depressing the BYPRESS button creates a hardwire bypass by connecting the input directly to the output.
