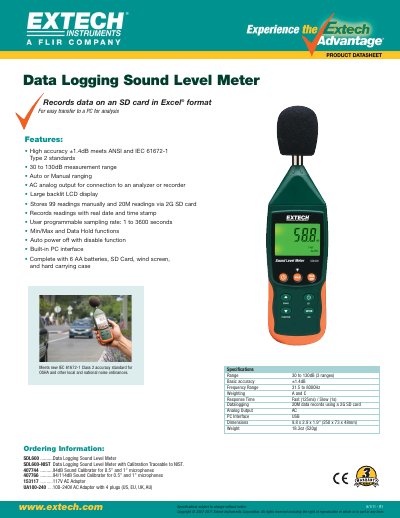

The Data Logging Sound Level Meter (SDL600) is a high-precision, multi-functional sound level meter that can measure A, C, Z frequency range sound levels and has data recording and a built-in PC interface, which can record data to an SD card and can be connected to a PC via USB for analysis.
The Extech SDL600 is a Data Logging Sound Level Meter designed with high accuracy meeting ANSI and IEC 61672-1 Type 2 standards. It features a measurement range of 30 to 130dB, auto or manual ranging, and an AC analog output for connection to analyzers or recorders.
| Range | 30 to 130dB (3 ranges) |
|---|---|
| Basic accuracy | ±1.4dB |
| Frequency Range | 31.5 to 8000Hz |
| Weighting | A and C |
| Datalogging capacity | 20M data records using a 2G SD card |
| Dimensions | 9.8 x 2.9 x 1.9" (250 x 73 x 48mm) |
| Weight | 18.3oz (520g) |
The device measures sound levels from 30 to 130dB across three ranges.
It stores up to 20 million data records using a 2G SD card.
The unit weighs 18.3oz, which is equivalent to 520g.
