The Extech EX503 Autoranging Multimeter can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity, and Thermocouple Temperature. It features a waterproof, rugged design for heavy duty use.

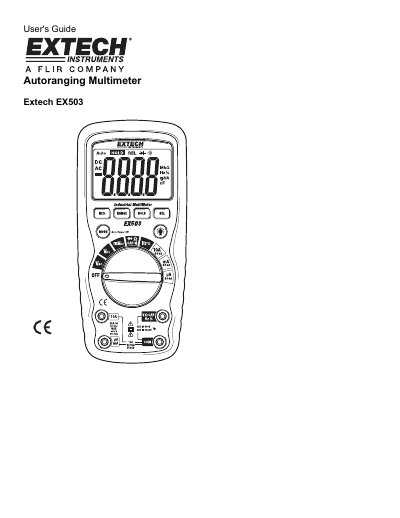

This document is the User's Guide for the Extech EX503 Autoranging Multimeter. It provides instructions on how to safely operate the device, including warnings about high voltage and proper use of test leads. The guide details the meter's features, such as its 4,000 count LCD display and waterproof design.
| Display | 4,000 count LCD |
|---|---|
| Max DC Voltage | 1000VDC |
| Max AC Voltage | 1000VAC rms |
| Max DC Current | 10A AC/DC |
| Max AC Current | 10A AC/DC |
| Max Resistance/Capacitance Input | 600VDC/AC rms |
It measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity, and Thermocouple Temperature.
The maximum input protection limit is 1000VDC/AC rms.
Do not make 20A current measurements for longer than 30 seconds.
