The Extech EX505 is an autoranging True RMS multimeter that measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, diode test, continuity, and thermocouple temperature. It features a waterproof, rugged design for heavy-duty use.

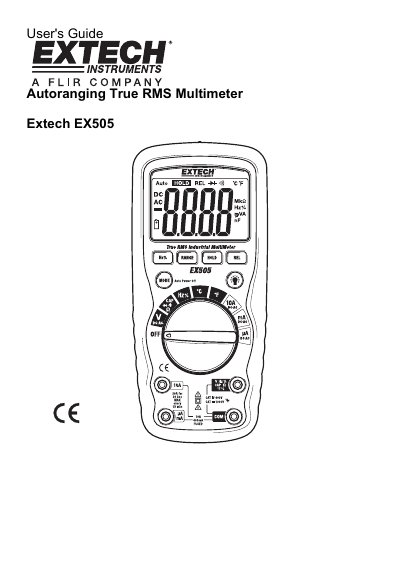

This document is the User's Guide for the Extech EX505 Autoranging True RMS Multimeter. It provides essential safety warnings, including input protection limits and precautions for high-voltage work. The guide details the meter's features, such as its 4,000 count LCD display and waterproof rugged design.
| Display | 4,000 count LCD display |
|---|---|
| Max DC Voltage | 1000VDC/AC rms |
| Max AC Current | 10A AC/DC (20A for 30 sec) |
| Max Resistance | S00VDC/AC rms |
The maximum input is 1000VDC/AC rms.
Do not make 20A current measurements for longer than 30 seconds.
It indicates that the value exceeds the selected range.
