The QVE11233 Sloted Optical Switch features 0.300” lead spacing and a 0.150” gap width. It is surface mount and has a 2mm aperture width.

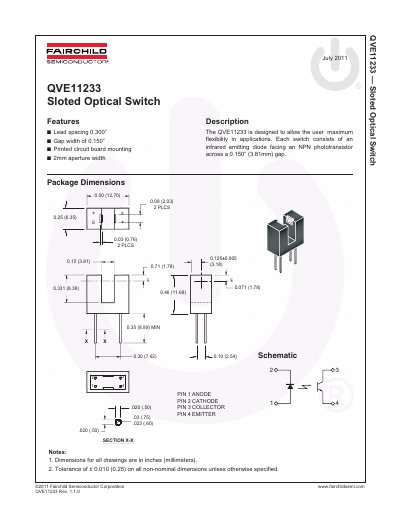

This document provides technical specifications for the QVE11233 sloted optical switch, a device designed to allow maximum flexibility in applications. It consists of an infrared emitting diode facing an NPN phototransistor with a 2mm aperture width across a 0.150" gap. The datasheet includes package dimensions, pinout information, and absolute maximum ratings.
| Lead spacing | 0.300" |
|---|---|
| Gap width | 0.150" |
| Operating Temperature | -40 to +85 °C |
| Collector to Emitter Voltage | 30 Vv |
| On-State Collector Current | 0.5 mA |
The maximum continuous forward current for the emitter is 50 mA.
The maximum collector to emitter voltage for the sensor output is 30 V.
The recommended soldering temperature for an iron is 240 °C for 5 seconds.
