The FFA60UA60DN UItrafast Rectifier is an ultrafast rectifier with low forward voltage drop and rugged UIS capability from Fairchild Semiconductor Corporation. It is intended for use as freewheeling and clamping rectifiers in a variety of switching power supplies and other power switching applications.

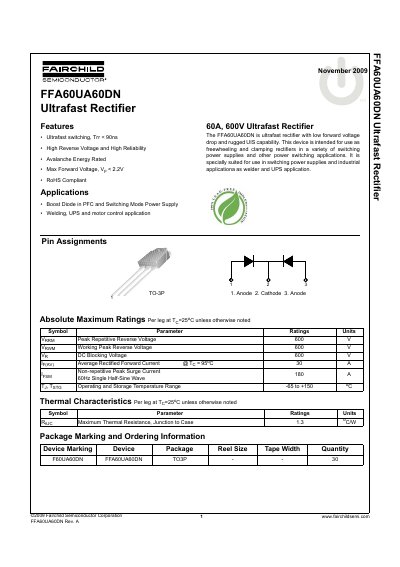

This document is a datasheet for the Fairchild Semiconductor FFA60UA60DN, an ultrafast rectifier designed for use as a freewheeling and clamping rectifier in switching power supplies, welding, UPS, and motor control applications. Key features include ultrafast switching with a reverse recovery time (Trr) of less than 90ns, high reverse voltage capability of 600V, and avalanche energy rating.
| Peak Repetitive Reverse Voltage | 600 V |
|---|---|
| DC Blocking Voltage | 600 V |
| Average Rectified Forward Current | 30 A |
| Non-repetitive Peak Surge Current | 180 A |
| Operating and Storage Temperature Range | -65 to +150 °C |
| Maximum Thermal Resistance, Junction to Case | 1.3 °C/W |
| Reverse Recovery Time | < 90 ns |
| Max Forward Voltage | < 2.2V |
It is intended for use as freewheeling and clamping rectifiers in switching power supplies, welding, UPS, and motor control applications.
Yes, the product is RoHS compliant.
