This document describes the features and characteristics of FFA60UP30DN ultrafast recovery power rectifier, including ultrafast recovery time less than 55ns, high reverse voltage of 300V, and avalanche energy rating. It is suitable for general purpose, switching mode power supply, free-wheeling diode for motor application, and power switching circuits.

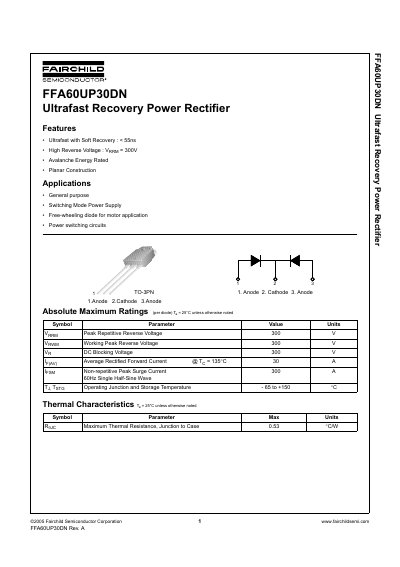

This document is a datasheet for the Fairchild Semiconductor FFA60UP30DN Ultrafast Recovery Power Rectifier. The device features ultrafast recovery characteristics with a soft recovery time of less than 55ns and a high reverse voltage rating of 300V. It utilizes a planar construction and is rated for avalanche energy.
| Peak Repetitive Reverse Voltage | 300 V |
|---|---|
| Average Rectified Forward Current | 30 A |
| Non-repetitive Peak Surge Current | 300 A |
| Operating Junction and Storage Temperature | -65 to +150 °C |
| Maximum Thermal Resistance, Junction to Case | 0.53 CW |
| Reverse Recovery Time (Typical) | < 55 ns |
| Avalanche Energy | 20 mJ |
The device is suitable for general purpose use, switching mode power supplies, free-wheeling diodes for motor applications, and power switching circuits.
The FFA60UP30DN is available in the TO-3PN package.
