1N5391 - 1N5399 is a series of general purpose rectifiers produced by Fairchild Semiconductor Corporation. It has a working ability of 1.5A, high current capability and low leakage current.

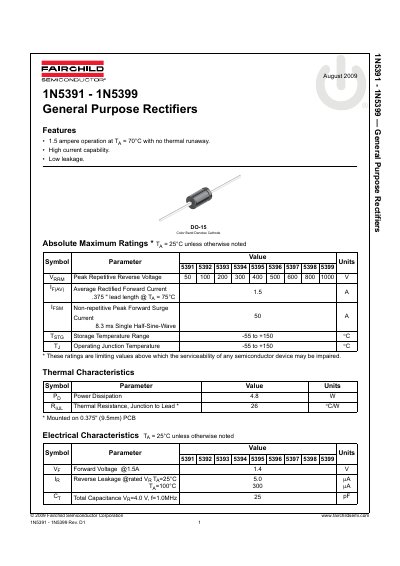

This document is a datasheet for the Fairchild Semiconductor 1N5393, a general purpose rectifier diode. It provides comprehensive technical specifications including absolute maximum ratings, electrical characteristics, and thermal data. The device is rated for 1.5 ampere operation at a temperature of 70°C.
| Peak Repetitive Reverse Voltage | 200 V |
|---|---|
| Average Rectified Forward Current | 1.5 A |
| Non-repetitive Peak Forward Surge Current | 50 A |
| Storage Temperature Range | -55 to +150 °C |
| Operating Junction Temperature | -55 to +150 °C |
| Power Dissipation | 4.8 W |
| Thermal Resistance, Junction to Lead | 26 °C/W |
| Forward Voltage @1.5A | 1.4 V |
| Reverse Leakage @rated Vp Ta=25°C | 5.0 uA |
| Total Capacitance | 25 pF |
The device supports an average rectified forward current of 15 A.
The operating junction temperature ranges from -55 to +150 °C.
