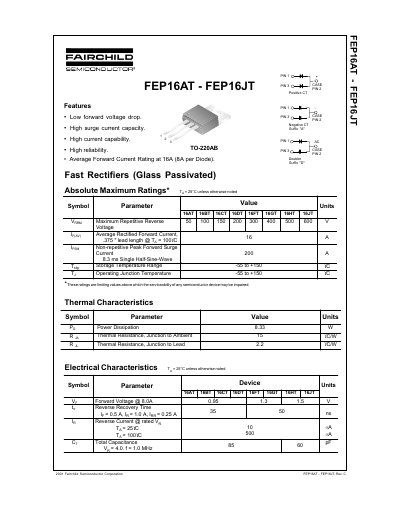

FEP16AT - FEP16JT Fast Rectifiers (Glass Passivated) has low forward voltage drop, high surge current capacity, high current capability and high reliability.
This document provides technical specifications for the Fairchild Semiconductor FES16AT through FES16JT series of fast rectifiers. These devices utilize glass passivated technology to offer low forward voltage drop and high surge current capacity. The series is available in various reverse voltage ratings ranging from 50V to 600V.
| Average Rectified Forward Current | 16 A |
|---|---|
| Non-repetitive Peak Forward Surge Current | 200 A |
| Storage Temperature Range | -55 to +150 °C |
| Operating Junction Temperature | -55 to +150 °C |
| Power Dissipation | 8.33 W |
| Thermal Resistance, Junction to Ambient | 15 °C/W |
| Thermal Resistance, Junction to Lead | 2.2 °C/W |
| Forward Voltage @ 8.0A | 0.95 V |
| Reverse Recovery Time | 35 ns |
The average forward current rating is 16A, with 8A per diode.
The non-repetitive peak forward surge current is 200 A.
The operating junction temperature range is from -55 to +150 °C.
