The document introduces the specifications and features of the 380926 brand's 2000A True RMS DC/AC Clamp/DMM product and its accessories. The product features a full-function autoranging DMM, including AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode, and continuity testing. Current measurements can be made up to 2000A through the clamp and up to 400mA via test leads. It has a large 4000-count backlit display for high resolution and easy viewing in dimly lit areas. With a basic DCV accuracy of 1% and a resolution of 0.1mV, as well as a current resolution of 0.1μA. The rugged 2-inch (50mm) jaws can accommodate one 2000MCM or two 500MCM cables. Other features include DCA push button zero, relative measurements, and data hold. It comes complete with test leads and a 9V battery.

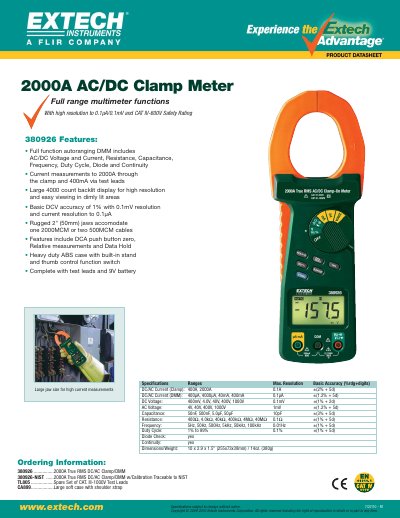

The Extech 380926 is a True RMS DC/AC Clamp/DMM designed for high-resolution electrical measurements. It features a large 4000 count backlit display and a rugged 2-inch jaw size capable of accommodating one 2000MCM or two 500MCM cables for high current measurements up to 2000A.
| DC/AC Current (Clamp) Max | 2000A |
|---|---|
| DC/AC Current (DMM) Max | 400mA |
| DC Voltage Max | 1000V |
| AC Voltage Max | 1000V |
| Capacitance Max | 50μF |
| Resistance Max | 40MΩ |
| Frequency Max | 100kHz |
| Duty Cycle Range | 1% to 99% |
| Display Count | 4000 count |
| Safety Rating | CAT IV-600V |
| Dimensions | 10 x 2.9 x 1.5" |
| Weight | 14oz. (380g) |
The device measures up to 2000A.
The jaws measure 2 inches or 50mm.
It has a CAT IV-600V Safety Rating.
