The MM74HCU04 is a hex inverter. It utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. It has high noise immunity and the ability to drive 15 LS-TTL loads.

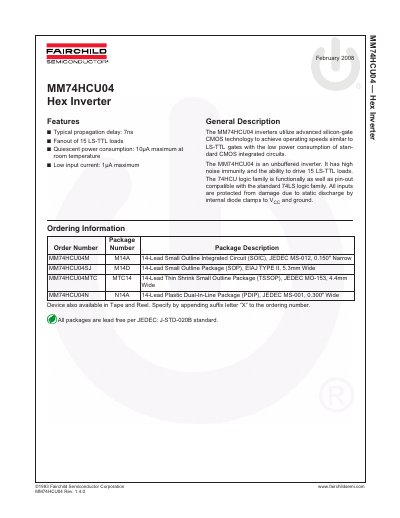

This document is a technical datasheet for the Fairchild MM74HCU04, an unbuffered hex inverter utilizing advanced silicon-gate CMOS technology. It offers operating speeds similar to LS-TTL gates while maintaining low power consumption typical of standard CMOS integrated circuits.
The datasheet provides comprehensive information including absolute maximum ratings, recommended operating conditions, and DC/AC electrical characteristics across various temperatures. It also details physical dimensions for four available packages: SOIC, SOP, TSSOP, and PDIP.
| Propagation Delay (Typ) | 7ns |
|---|---|
| Fanout | 15 LS-TTL loads |
| Quiescent Power Consumption (Max) | 10uA |
| Low Input Current (Max) | 1uA |
| Supply Voltage Range | 2 to 6 VV |
| Operating Temperature Range | -40 +85 °C |
The typical propagation delay is 7ns.
It has the ability to drive 15 LS-TTL loads.
Yes, it is functionally as well as pin-out compatible with the standard 74LS logic family.
