The UCC3808 is a low power, high performance, dual output current mode pulse width modulator. The device contains all of the control and drive circuitry required for off-line or DC-to-DC fixed frequency current-mode switching power supplies with minimal external parts count.

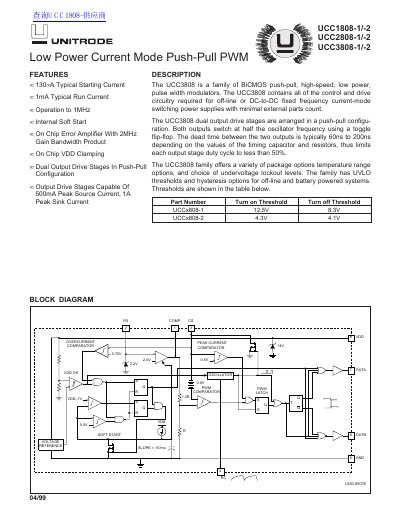

This document is a datasheet for the Unitrode UCC1808-1/-2, UCC2808-1/-2, and UCC3808-1/-2 family of BiCMOS push-pull, high-speed, low power pulse width modulators. These devices contain all control and drive circuitry required for off-line or DC-to-DC fixed frequency current-mode switching power supplies with minimal external parts.
| Typical Starting Current | 130mA |
|---|---|
| Typical Run Current | 1mA |
| Maximum Oscillator Frequency | 1MHz |
| Error Amplifier Gain Bandwidth Product | 2MHz |
| Output Drive Sink Current | 1A Peak |
| Oscillator Frequency (UCC3808) | 175 to 213 kHz |
| Turn on Threshold (UCCx808-1) | 12.5V |
| Turn on Threshold (UCCx808-2) | 4.3V |
The typical starting current is 130mA.
The device supports operation up to 1MHz.
The turn-on threshold is 12.5V for the UCCx808-1 and 4.3V for the UCCx808-2.
