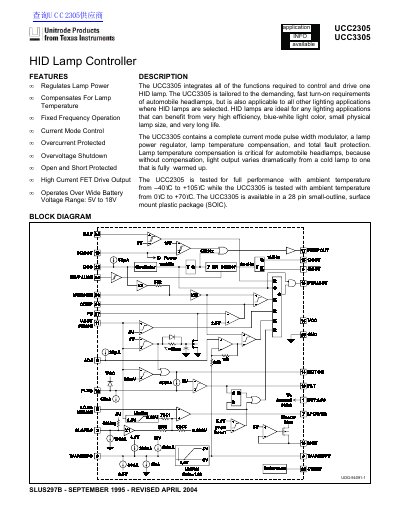

UCC2305 UCC3305 integrates all of the functions required to control and drive one HID lamp, and is tailored to the demanding, fast turn-on requirements of automobile headlamps, but is also applicable to all other lighting applications where HID lamps are selected.
The document details the features of the UCC2305 and UCC3305, which integrate functions required to control and drive one HID lamp. These devices are tailored for automobile headlamps but applicable to other lighting applications requiring high efficiency and long life. Key features include current mode control, overcurrent protection, overvoltage shutdown, and open/short circuit protection.
| Operating Temperature Range (UCC2305) | -40°C to +105°C |
|---|---|
| Operating Temperature Range (UCC3305) | 0°C to +70°C |
| Package Type (UCC3305) | 28 pin SOIC |
The device is tailored to the demanding, fast turn-on requirements of automobile headlamps.
Yes, it includes lamp temperature compensation because light output varies dramatically from a cold lamp to one that is fully warmed up.
