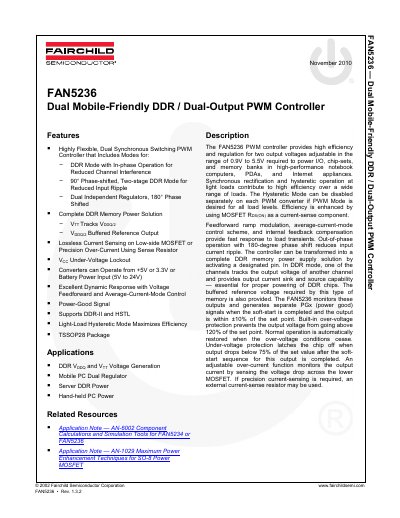

The FAN5236 is a dual mobile-friendly DDR / dual-output PWM controller. It features a highly flexible dual synchronous switching PWM controller with DDR mode and 90° phase-shifted two-stage DDR mode for reduced channel interference and input ripple. It also has a complete DDR memory power solution, supports DDR-II and HSTL, and maximizes efficiency.
The FAN5236 is a dual synchronous switching PWM controller designed to provide high efficiency and regulation for two output voltages adjustable between 0.9V and 5.5V. It is intended for powering I/O, chip-sets, and memory banks in high-performance notebook computers, PDAs, and Internet appliances. The device supports both DDR memory power solutions and dual independent regulator configurations.
| Output Voltage Range | 0.9V to 5.5V |
|---|---|
| Input Voltage Range | 5V to 24V |
| Package Type | TSSOP28 |
| Oscillator Frequency | 255 kHz to 345 kHz |
| Internal Reference Voltage | 0.900V |
| Over-Voltage Threshold | 115% to 125% of Set Point |
The output voltages are adjustable in the range of 0.9V to 5.5V.
The converters can operate from +5V, 3.3V, or battery power input ranging from 65V to 24V.
It is available in a 28-Lead Thin-Shrink Small-Outline Package (TSSOP).
