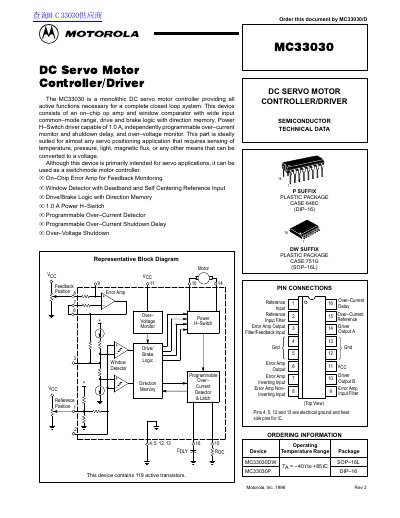

This document introduces the technical parameters of MC33030, including voltage range, operating temperature range, and package type.
The MC33030 is a monolithic DC servo motor controller designed to provide all active functions necessary for a complete closed-loop system. It integrates an on-chip operational amplifier and a window comparator with a wide input common-mode range. The device includes drive and brake logic with direction memory and a Power H-Switch driver capable of 1.0 A.
| Drive Output Source Current | 1.0 A |
|---|---|
| Drive Output Sink Current | 1.0 A |
| Power Supply Voltage | 36 V |
| Operating Junction Temperature | +150 °C |
| Operating Ambient Temperature Range | -40 to +85 °C |
| Unity-Gain Crossover Frequency | 550 kHz |
| Over-Voltage Shutdown Threshold | 16.5 V |
The maximum power supply voltage (Voc) is 36 V.
The device can source or sink up to 1.0 A at the drive output.
The device operates in an ambient temperature range of -40 to +85 °C.
