The data sheet introduces the features and characteristics of the MC33201/2/4 series low-voltage rail-to-rail operational amplifiers, including operating voltage range, input and output range, output drive capability, gain bandwidth product, etc.

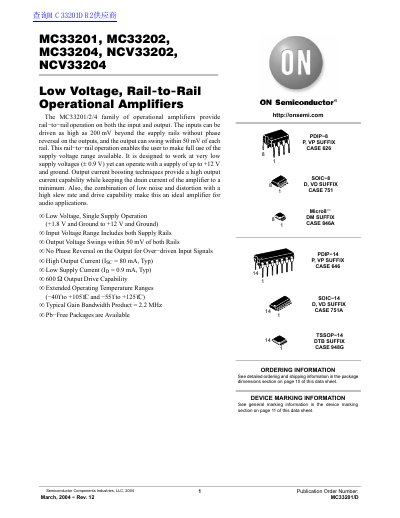

This document is a technical datasheet for the MC33201/2/4 family of operational amplifiers manufactured by ON Semiconductor. The devices are designed for single-supply operation ranging from +0.9 V to +12 V and feature rail-to-rail input and output capabilities, allowing full utilization of the supply voltage range.
| Supply Voltage Range | +0.9 V to +12 V |
|---|---|
| Output Short Circuit Current | 80 mA (Typical) |
| Power Supply Current per Amplifier | 0.9 mA (Typical at 25°C) |
| Gain Bandwidth Product | 2.2 MHz |
| Operating Temperature Range (Extended) | -55°C to +125°C |
| Input Offset Voltage (Max at 5.0V) | 10 mV |
The devices are designed to work at very low supply voltages starting from +0.9 V.
Yes, they provide rail-to-rail operation on both the input and output.
Yes, the NCV33202 and NCV33204 variants are qualified for automotive use.
