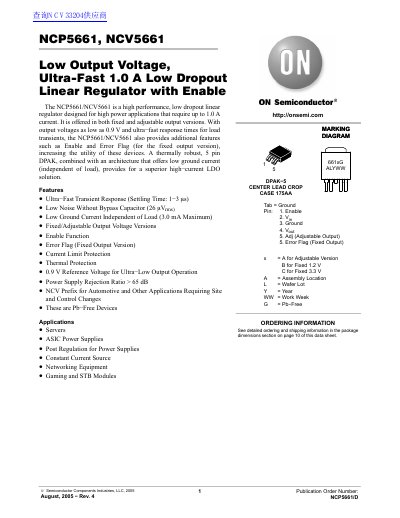

The NCP5661/NCV5661 is a high performance, low dropout linear regulator designed for high power applications that require up to 1.0 A current. It is offered in both fixed and adjustable output versions. With output voltages as low as 0.9 V and ultra-fast response times for load transients, the NCP5661/NCV5661 also provides additional features such as Enable and Error Flag (for the fixed output version), increasing the utility of these devices. A thermally robust, 5 pin DPAK, combined with an architecture that offers low ground current (independent of load), provides for a superior high-current LDO solution.
The NCP5661/NCV5661 is a high performance, low dropout linear regulator designed for high power applications that require up to 1.0 A current. It is offered in both fixed and adjustable output versions with output voltages as low as 0.9 V.
| Output Current | 1.0 A |
|---|---|
| Input Voltage Range | 2.0 - 9.0 V |
| Output Noise Voltage | 26 uVrms |
| Ground Current | 3.0 mA Maximum |
| Transient Response Settling Time | 1-3 us |
| Power Supply Rejection Ratio | > 65 dB |
| Thermal Shutdown Temperature | 160 °C |
The device is offered in both fixed and adjustable output versions.
Yes, the Error Flag is provided for the fixed output version to indicate when the output voltage is out of regulation.
The device uses a 0.9 V reference voltage for ultra-low output operation.
