This document introduces the features and characteristics of the LM358/D series dual operational amplifiers, including low power consumption, single or dual power supply, input voltage range extended to ground/VEE, etc.

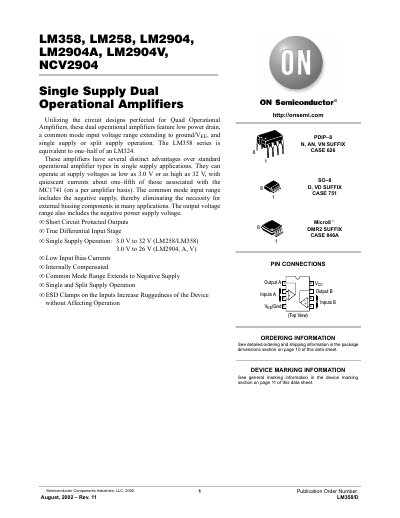

This document provides technical specifications and application information for the LM358, LM258, LM2904, LM2904A, LM2904V, and NCV2904 series of single supply dual operational amplifiers. These devices utilize circuit designs perfected for quad operational amplifiers, offering low power drain and a common mode input voltage range extending to ground or the negative supply voltage.
| Supply Voltage Range (LM358/LM258) | 3.0 V to 32 V |
|---|---|
| Supply Voltage Range (LM2904) | 3.0 V to 26 V |
| Quiescent Current | About one-fifth of MC1741 |
| Output Short Circuit Duration | Continuous |
| Junction Temperature | 150°C |
Yes, the NCV2904 is qualified for automotive use.
Yes, they support both single and split supply operation.
The maximum input differential voltage range is +32 V.
