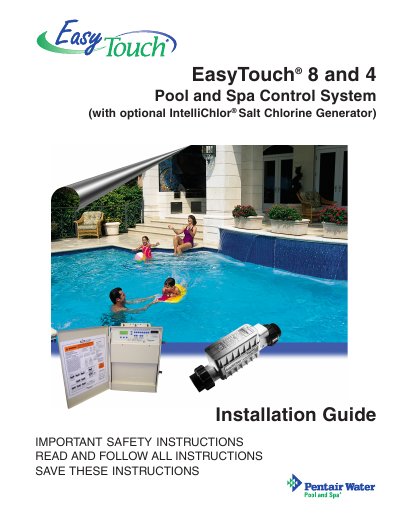

This document provides an installation guide for the EasyTouch® 8 and 4 Pool and Spa Control System (with optional IntelliChlor® Salt Chlorine Generator), including safety instructions, installation steps, required tools, plumbing requirements, equipment location, etc.
The document serves as an installation manual for the Pentair EasyTouch 8 and 4 Pool and Spa Control System kits. It details the contents of the kit, required tools, and plumbing requirements necessary for setup.
The guide covers step-by-step procedures for installing the load center, connecting high voltage wires, mounting the motherboard, and wiring auxiliary relays, valve actuators, temperature sensors, and optional IntelliChlor salt chlorine generators.
| Maximum supply conductor current | 125 Amps at 125/220 VAC |
|---|---|
| Grounding wire size (US) | No. 8 AWG solid copper |
| Grounding wire size (Canada) | two No. 6 AWG solid copper conductor |
All work must be performed by a licensed electrician.
The maximum supply conductor current must be 125 Amps at 125/220 VAC.
No, the product should not be used to control an automatic pool cover.
