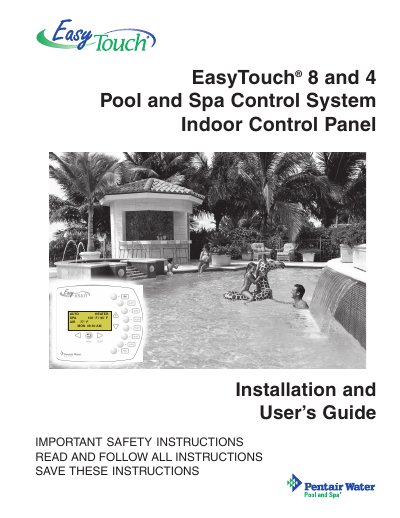

This document is about the installation and use instructions of EasyTouch Indoor Control Panel.
This document serves as the installation and user's guide for the Pentair EasyTouch 8 and 4 Pool and Spa Control System Indoor Control Panels. It provides essential safety instructions, lists kit contents, and details related manuals and accessories compatible with the system.
The manual covers comprehensive operation of the control panel, including heating pools and spas, adjusting water temperatures, scheduling equipment operations, and controlling lights. It also explains how to use various accessory controllers such as the iS4, iS10, and QuickTouch wireless remotes.
| Maximum supply conductor current | 125 Amps at 125 VAC |
|---|---|
| Grounding wire size (US) | No. 8 AWG solid copper |
| Grounding wire size (Canada) | two No. 6 AWG solid copper |
The maximum supply conductor current must be 125 Amps at 125 VAC.
Water temperature in excess of 100 degrees Fahrenheit may be hazardous to your health.
All work must be performed by a licensed electrician.
