Key facts
- Brand
- EasyTouch
- Model
- EasyTouch 8
- Documents
- 4
- Languages
- EN
- Last added
- 2012-07-12
Start here

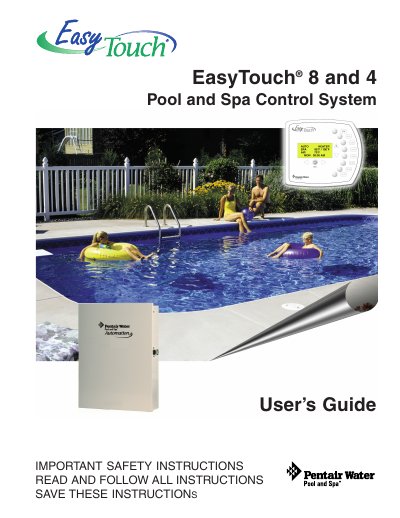

Pentair EasyTouch 8 and 4 Pool and Spa Control System User's Guide
The Pentair EasyTouch 8 and 4 Pool and Spa Control System is designed to automate and control pool and spa equipment, including heaters, pumps, lights, and chemical generators. The system features a control panel with various buttons and menus to manage settings such as temperature, schedules, and lighting effects like IntelliBrite color shows.
Read onlineEasyTouch 8 specifications
| Maximum supply conductor current | 125 Amps at 125/220 VAC |
|---|---|
| Grounding wire size (US) | No. 8 AWG solid copper |
| Grounding wire size (Canada) | two No. 6 AWG solid copper conductor |
Source: Pentair EasyTouch 8 and 4 Pool and Spa Control System Installation Guide
All EasyTouch 8 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Who must perform the installation?
All work must be performed by a licensed electrician.
From: Pentair EasyTouch 8 and 4 Pool and Spa Control System Installation Guide
What is the maximum supply conductor current?
The maximum supply conductor current must be 125 Amps at 125/220 VAC.
From: Pentair EasyTouch 8 and 4 Pool and Spa Control System Installation Guide
What is the intended application for this control system?
This product is intended for use in swimming pool applications only.
From: Pentair EasyTouch 8 and 4 Pool and Spa Control System User's Guide
What type of heaters is this system designed to control?
The control system is intended to control heaters with built-in high limit circuits only.
From: Pentair EasyTouch 8 and 4 Pool and Spa Control System User's Guide
What is the maximum supply conductor current?
The maximum supply conductor current must be 125 Amps at 125 VAC.
From: Pentair EasyTouch 8/4 Indoor Control Panel Installation User Guide
What safety warning applies to water temperature?
Water temperature in excess of 100 degrees Fahrenheit may be hazardous to your health.
From: Pentair EasyTouch 8/4 Indoor Control Panel Installation User Guide
