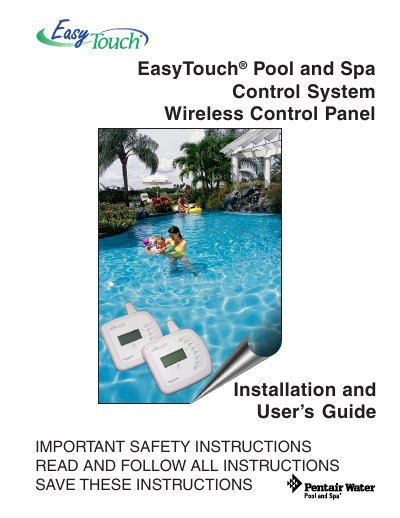

Pentair EasyTouch Wireless Control Panel Installation and User's Guide

The EasyTouch® Pool and Spa Control System Wireless Control Panel is a wireless control panel for pool and spa control systems. It is easy to install and use, and allows for wireless control of pool and spa equipment. The system is developed by Pentair Water Pool and Spa, Inc. and is designed for controlling and managing pool and spa equipment.

Brand: EasyTouch
Category: Other
Document type: User Manual
Language: English
Pages: 80
File format: PDF
File size: 1.2 MB
Published: 12 July, 2012
Updated: 29 September, 2023
MD5 checksum: 72597E06A2EF6EFD3E00197F3C45D7DB
PDF: Pentair EasyTouch Wireless Control Panel Installation and User's Guide PDF

About this manual

This document serves as the Installation and User's Guide for the EasyTouch Wireless Control Panel, a component of the Pentair Water Pool and Spa Control System. It covers safety instructions, kit contents, and detailed setup procedures for various pool and spa features including heating, lighting, and equipment scheduling. The guide is intended for licensed electricians and system owners/operators.

What's inside

Important Safety Instructions
EasyTouch Wireless Control Panel Overview
Setting up the EasyTouch System
EasyTouch Menus
Heating the Spa/Pool
Schedule start and stop times
Controlling Lights
Troubleshooting
EasyTouch Error Messages
EasyTouch System Wiring Diagram

Frequently asked questions

What is the maximum current rating for the supply conductor?

The maximum supply conductor current must be 125 Amps at 125 VAC.

What is the minimum distance required for the emergency switch in multi-unit installations?

The emergency switch must be installed at least 10 feet (3.05 m) away from the unit.

What is the minimum distance for installing spa-side remote controls from the pool wall?

You must install spa-side remote controls a minimum of five (5) feet from the inside wall of the pool and spa.
