The document describes the features and characteristics of three different colored bi-color surface mount LED products produced by Dialight Corporation. These products have different power dissipation, forward current, and peak current parameters, and are used within different operating temperature ranges. The document also provides the dimensions and packaging options for these products.

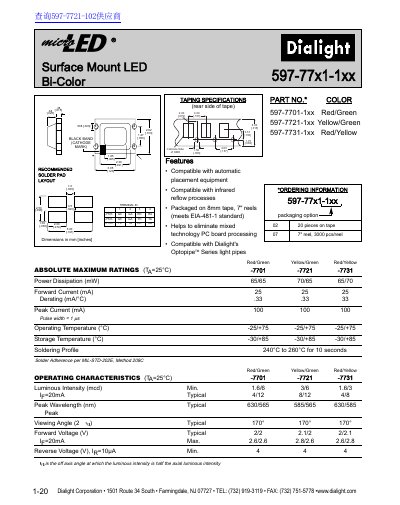

This document provides technical specifications for the Dialight 597-77x1-1xx Series Surface Mount LED Bi-Color. The product is available in three color combinations: Red/Green (597-7701-1xx), Yellow/Green (597-7721-1xx), and Red/Yellow (597-7731-1xx). It is designed to be compatible with automatic placement equipment, infrared reflow processes, and Dialight's Optopipe™ Series light pipes.
The datasheet details absolute maximum ratings such as power dissipation and forward current, along with operating characteristics including luminous intensity, peak wavelength, viewing angle, and forward voltage. It also specifies soldering profiles and packaging options meeting EIA-481-1 standards.
| Power Dissipation (Red/Green) | 65 mW |
|---|---|
| Forward Current | 25 mA |
| Peak Wavelength (Red/Green) | 630/565 nm |
| Viewing Angle | 170° |
| Operating Temperature Range | -25/+75 °C |
The series is available in Red/Green, Yellow/Green, and Red/Yellow configurations.
The recommended soldering temperature is 240°C to 260°C for a duration of 10 seconds.
The LEDs are packaged on 8mm tape with 7" reels, offering either 20 pieces per tape or 3000 pcs/reel.
