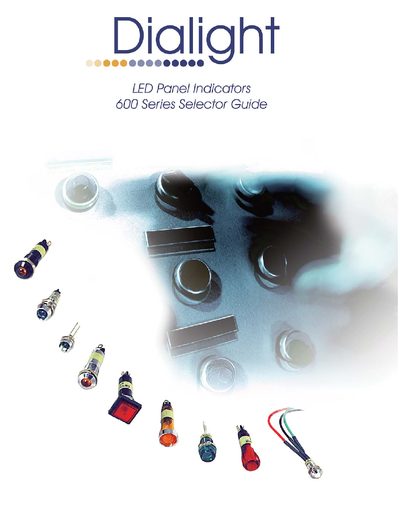

The Dialight 600 Series LED Panel Mount Indicators brochure provides specifications, colors, mounting options, and electrical details.
The 600 Series LED Panel Mount Indicators are front‑mounting devices offered in red, green, and yellow colors. They are RoHS compliant, have a long life of typically 100 K hours, and consume up to 90 % less power than incandescent indicators.
The series includes models 605, 606, 607, 608, 609, 610, 612, and 616, each available with different mounting‑hole sizes (5 mm to 16 mm) and voltage options (2 VDC to 24 VDC). Detailed tables list part numbers, emitted colors, current, intensity, LED positions, and finish for each model.
| Operating Temperature | -25 °C to +85 °C |
|---|---|
| Typical Life | ≈100 000 hours |
| Power Consumption | Up to 90 % less than incandescent |
| Mounting Hole Sizes | 5 mm to 16 mm |
| Available Colors | Red, Green, Yellow |
| Operating Voltage Options | 2 VDC, 6 VDC, 12 VDC, 24 VDC |
The series offers mounting holes from 5 mm (0.196 in) up to 16 mm (0.642 in) depending on the model.
The indicators operate from –25 °C to +85 °C.
Red, green, and yellow LEDs are available.
Yes, the 600 Series indicators are RoHS compliant.
