Dialight 595-2x01-0xx Prism CBI Circuit Board Indicator Datasheet

This datasheet provides information on the dimensions, colors, packaging, power supply, compatibility and other information of the 595-2x01-0xx series products.

Brand: Dialight
Category: LED Driver Controller
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 21 KB
Published: 06 June, 2012
Updated: 30 September, 2023
Model: 595-2X01-0XX
MD5 checksum: 92C428A32371BBFE7326D8F5B6170C43
PDF: Dialight 595-2x01-0xx Prism CBI Circuit Board Indicator Datasheet PDF

About this manual

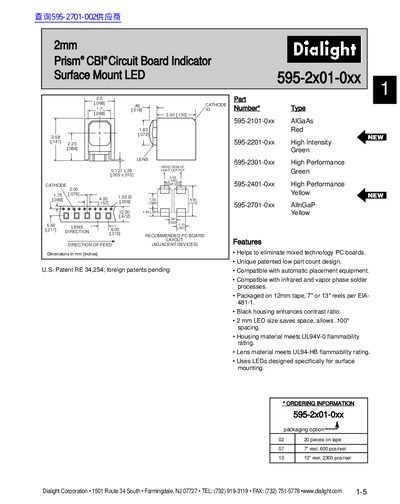

This document is a technical datasheet for the Dialight 595-2x01-0xx Prism CBI Circuit Board Indicator. It describes a surface-mount LED device available in red, green, and yellow variants (AlGaAs and AllnGaP). The product features a unique patented low part count design with a black housing to enhance contrast ratio.

What's inside

Features
Ordering Information
Absolute Maximum Ratings
Operating Characteristics
LED Colors
Soldering Temperatures

Specifications

Product Type	Prism CBI Circuit Board Indicator Surface Mount LED
Housing Material Rating	UL94V-0
Lens Material Rating	UL94-HB
Forward DC Current (Max)	30mA
Operating Temperature Range	-30°C to +85°C

Frequently asked questions

What are the available LED colors for this model?

The available colors include AlGaAs Red, High intensity Green, High Performance Green, High Performance Yellow, and AllnGaP Yellow.

What is the maximum power dissipation for this LED?

The maximum power dissipation varies by color code: 60mA for Red and 75mA for Green and Yellow variants.

Is this component compatible with automatic placement equipment?

Yes, the datasheet states it is compatible with automatic placement equipment.
