This document describes the features and characteristics of HL11 applied in architecture and landscape, including long life, low power consumption, and dimmability.

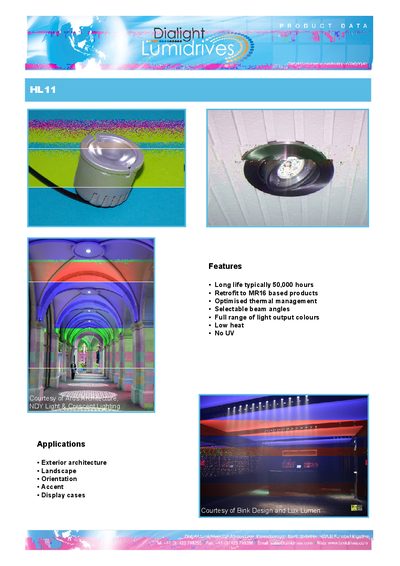

The HL11 Lumidrives series from Dialight offers long life (up to 50,000 hours), selectable beam angles, low heat, no UV and a full range of light output colours. It is designed for retrofit to MR16 based products and suitable for exterior architecture, landscape, accent lighting and display cases.
Technical data includes power consumption (1.2 W warm white, 2.4 W other colours), operating temperature range (‑10 °C to +40 °C), maximum current (350 mA warm white, 700 mA other colours) and typical light output values for each colour. The sheet also provides compatible drivers, dimensions and typical connection diagrams.
| Power Consumption (warm white) | 1.2 watts |
|---|---|
| Power Consumption (other colours) | 2.4 watts |
| Maximum Current (warm white) | 350 mA |
| Maximum Current (other colours) | 700 mA |
| Typical Light Output (Warm White) | 36 lm/mW |
| Typical Light Output (Blue) | 176 lm/mW |
| Typical Light Output (Green) | 36 lm/mW |
| Typical Light Output (Red) | 36 lm/mW |
| Typical Light Output (Amber) | 36 lm/mW |
The HL11 warm white module consumes 1.2 watts.
Warm white requires 350 mA constant current, while other colours require 700 mA constant current.
The HL11 blue module provides a typical light output of 176 lm/mW.
