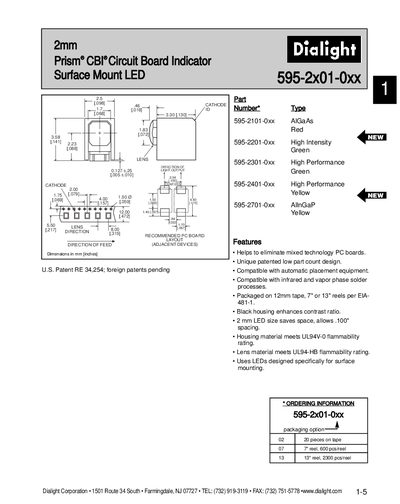

This datasheet provides detailed information on the 595-2x01-0xx series of products, including dimensions, model numbers, colors, and packaging.
The Dialight 595-2x01-0xx series are 2 mm Prism CBI surface‑mount LEDs available in red, green, yellow and high‑performance variants. They feature a low part‑count design, UL94‑V0 housing, UL94‑HB lens, and are compatible with automatic placement and both infrared and vapor‑phase solder processes.
The sheet provides absolute maximum ratings, operating characteristics, recommended PCB layout guidelines, and ordering options. Key electrical parameters such as forward voltage, current limits, and temperature ranges are listed for each color variant.
| Forward DC Current | 30 mA |
|---|---|
| Operating Temperature Range | -30 °C to +85 °C |
| Storage Temperature Range | -30 °C to +80 °C |
| Peak Wavelength (green) | 560 nm |
They are offered in 20‑piece tape, 7" reels (600 pcs per reel), and 13" reels (2 300 pcs per reel).
The housing material meets UL94‑V0 rating, and the lens material meets UL94‑HB rating.
