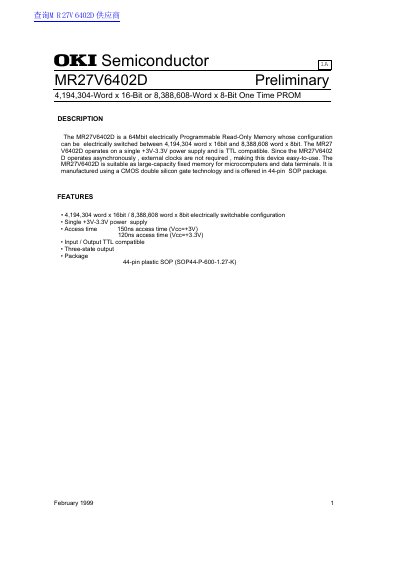

MR27V6402D is a 64Mbit electrically programmable read-only memory whose configuration can be electrically switched between 4,194,304 word x 16bit and 8,388,608 word x 8bit. The MR27 V6402D operates on a single +3V-3.3V power supply and is TTL compatible. Since the MR27V6402 D operates asynchronously , external clocks are not required , making this device easy-to-use. The MR27V6402D is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 44-pin SOP package.
The OKI MR27V6402D is a 64Mbit electrically programmable read-only memory (PROM) manufactured using CMOS double silicon gate technology. It is offered in a 44-pin plastic SOP package and operates on a single +3V to +3.3V power supply. The device features an electrically switchable configuration, allowing it to operate as either 4,194,304 words x 16 bits or 8,388,608 words x 8 bits.
| Memory Capacity | 64Mbit |
|---|---|
| Configurations | 4,194,304 word x 16bit / 8,388,608 word x 8bit |
| Operating Voltage | +3V-3.3V |
| Access Time (3V) | 150ns |
| Access Time (3.3V) | 120ns |
| Package | 44-pin plastic SOP |
| Operating Temperature | 0 to 70 °C |
The device can be electrically switched between 4,194,304 word x 16bit and 8,388,608 word x 8bit.
No, the device operates asynchronously, so external clocks are not required.
The recommended operating voltage is between 2.7V and 3.6V.
